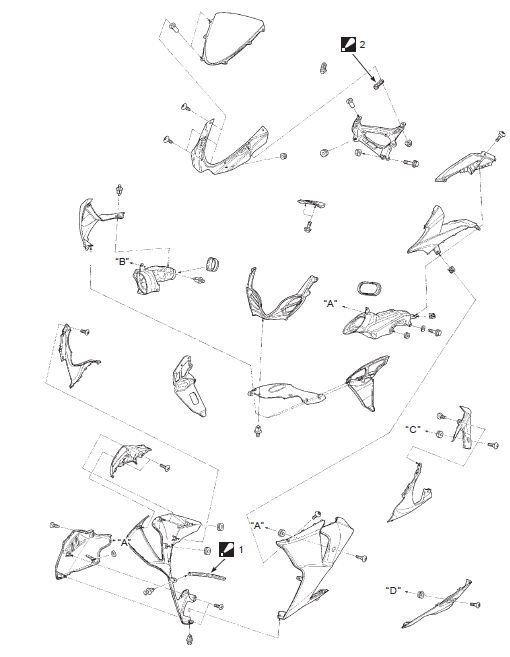

Suzuki GSX-R. Exterior parts construction

Upper cowling bracket : set the punch mark to the front and upper side.
Rear view mirror cushion : set the dent side to inside.
To frame
To headlight assembly
To sprocket cove
To side-stand bracket

Rear fender construction

Electric parts holder bracket Rear fender (front) Rear fender (rear) Rear fender (lower) Rear fender guard (e-24 only) ...
