Suzuki GSX-R 1000 Service Manual: Symbols

Suzuki GSX-R 1000 Service Manual / General information / General information / General description / Symbols

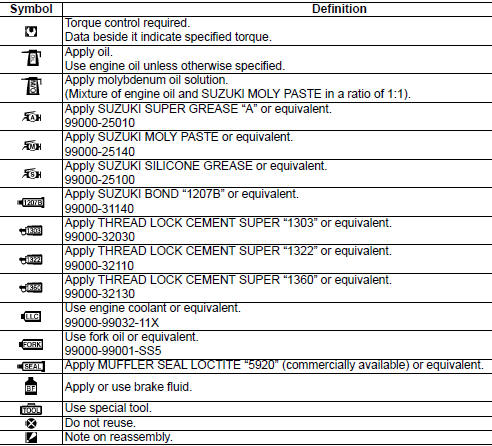

Listed in the table below are the symbols indicating instructions and other information necessary for servicing.

The meaning of each symbol is also included in the table.

Suzuki GSX-R. Symbols

Abbreviations

A:
abdc: after bottom dead center ac: alternating current
acl: air cleaner, air cleaner box api: american petroleum institute atdc: after top dead center atm pressure: atmospheric pressure, atmospheric pressure sensor (aps, ap sensor) a/f: air fuel mixture

B:
baro: barometric pressure (atmospheric pressure) bbdc: before bottom dead center btdc: before top dead center b+: battery positive voltage

C:
ckp sensor: crankshaft position sensor (ckps) ckt: circuit
clp switch: clutch lever position switch (clutch switch)
cmp sensor: camshaft position sensor (cmps) co: carbon monoxide
cpu: central processing unit

D:
dc: direct current
dmc: dealer mode coupler dohc: double over head camshaft drl: daytime running light DTC: diagnostic trouble code

E:
ecm: engine control module engine control unit (ecu) (fi control unit)
ect sensor: engine coolant temperature sensor (ects)
water temp. Sensor (wts) evap: evaporative emission exc system: exhaust control system (excs) exc valve: exhaust control valve (excv) excv actuator: exhaust control valve actuator (excva)

F:
fi: fuel injection, fuel injector fp: fuel pump
fpr: fuel pressure regulator fp relay: fuel pump relay

G:
gen: generator
gnd: ground
gp switch: gear position switch

H:
hc: hydrocarbons
ho2 sensor: heated oxygen sensor (ho2s)

I:
iap sensor: intake air pressure sensor (iaps) iat sensor: intake air temperature sensor (iats) ig: ignition
isc valve: idle speed control valve (iscv)

J:
jaso: japanese automobile standards organization

L:
lcd: liquid crystal display led: light emitting diode (malfunction indicator lamp) lh: left hand

M:
mal-code: malfunction code (diagnostic code) max: maximum
mil: malfunction indicator lamp (led) min: minimum

N:
nox: nitrogen oxides

O:
ohc: over head camshaft
ops: oil pressure switch

P:
pair: pulsed secondary air injection pcm: power control module pcv: positive crankcase ventilation (crankcase breather)

R:
rh: right hand
rom: read only memory

S:
Sae: society of automotive engineers sds: suzuki diagnosis system srad: suzuki ram air direct stc system: secondary throttle control system (stcs)
stp sensor: secondary throttle position sensor (stps)
st valve: secondary throttle valve (stv) stv actuator: secondary throttle valve actuator (stva)

T:
to sensor: tip-over sensor (tos) tp sensor: throttle position sensor (tps)
