Suzuki GSX-R 1000 Service Manual: Rear fender construction

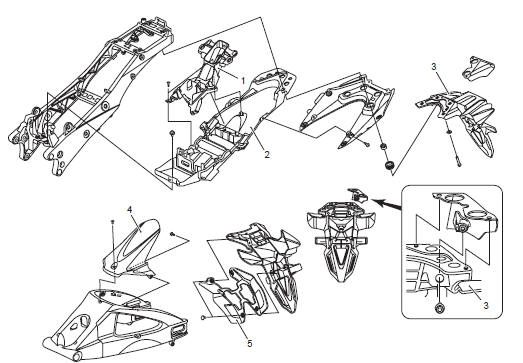

Suzuki GSX-R. Rear fender construction


  1. Electric parts holder bracket
  2. Rear fender (front)
  3. Rear fender (rear)
  4. Rear fender (lower)
  5. Rear fender guard (e-24 only)
