Suzuki GSX-R 1000 Service Manual: Special tools and equipment
Recommended service material
| Note required service material is also described in the following. “Lubrication points” |

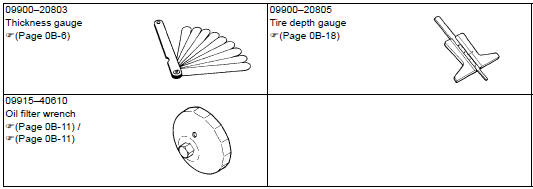

Special tool
Specifications
Tightening torque specifications
Note
the specified tightening torque is described in the following.
“Chassis bolt and nut inspection”
Reference: for the tightening torque o ...
Service data
...
Other materials:
Exterior parts removal and installation
Side frame cover
Removal
Note
the left and right side frame covers are
installed symmetrically and therefore the
removal/installation procedure for one side is
the same as that for the other side.
Remove the bolt (1).
Remove the side frame cover (2).
...
Engine top side assembly
Assemble the engine top side in the reverse order of
disassembly. Pay attention to the following points:
Cylinder head
Install the dowel pins and a new cylinder head gasket
(1) to the cylinder.
Caution
use a new gasket to prevent gas leakage.
Place the cylinder head ...
Fuel tank construction
Fuel tank heat
shield
: aluminum film side should face the engine side.
Fuel tank front cover
Fuel tank front bracket
Velcro fastenings
: clean the adhesive surface before adhering
the velcro fastenings.
Insert
to the bracket.
Apply
...
