Suzuki GSX-R 1000 Service Manual: Specifications

Service data

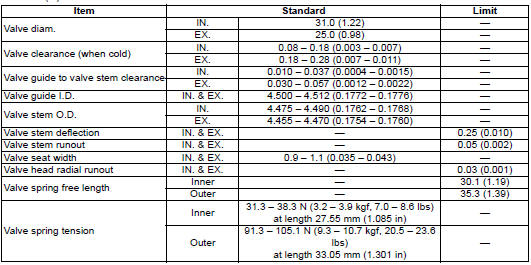

Valve + guide

unit: mm (in)

Suzuki GSX-R. Service data


Camshaft + cylinder head

unit: mm (in)

Suzuki GSX-R. Service data

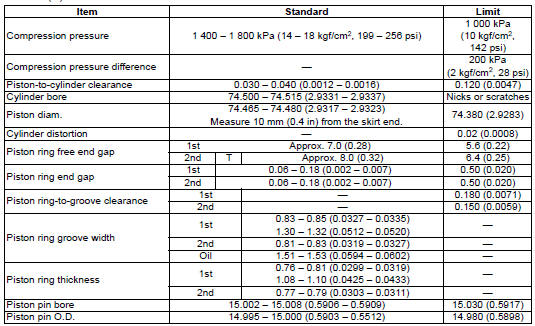

Cylinder + piston + piston ring

unit: mm (in)

Suzuki GSX-R. Cylinder + piston + piston ring

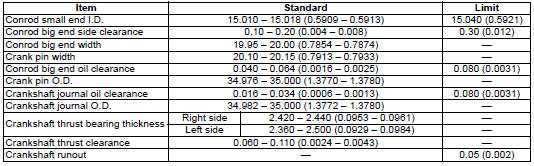

Conrod + crankshaft

unit: mm (in)

Suzuki GSX-R. Conrod + crankshaft


Balancer

unit: mm (in)

Suzuki GSX-R. Balancer


Oil pump

Suzuki GSX-R. Oil pump

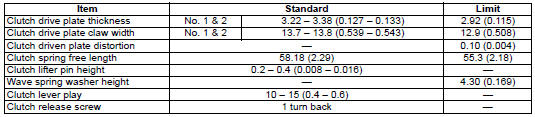

Clutch

unit: mm (in)

Suzuki GSX-R. Clutch

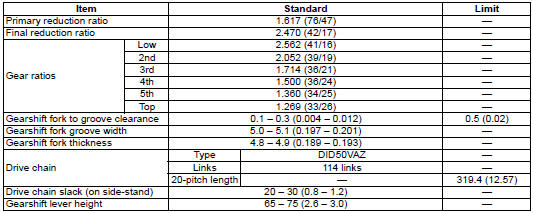

Drive

train

unit: mm (in) except ratio

Suzuki GSX-R. Drive train

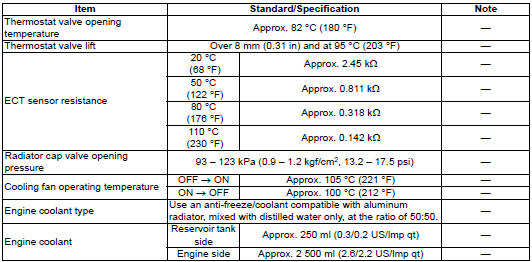

Thermostat + radiator + cooling fan + coolant

Suzuki GSX-R. Thermostat + radiator + cooling fan + coolant


Injector + fuel pump + fuel pressure regulator

Suzuki GSX-R. Injector + fuel pump + fuel pressure regulator

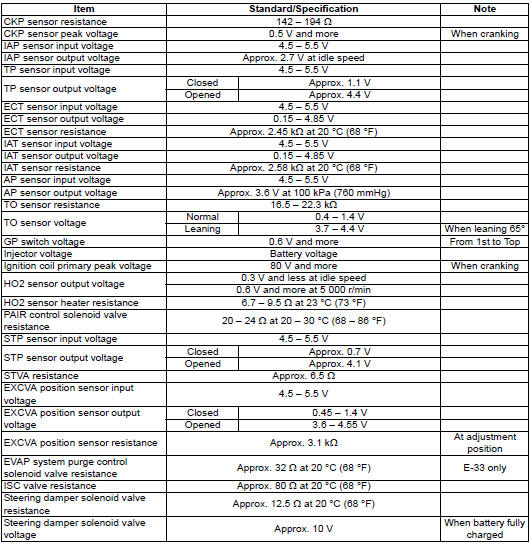

Fi sensors

Suzuki GSX-R. Fi sensors


Throttle body

Suzuki GSX-R. Throttle body

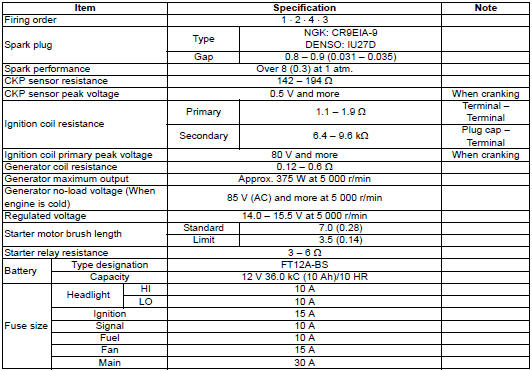

Electrical

unit: mm

Suzuki GSX-R. Electrical

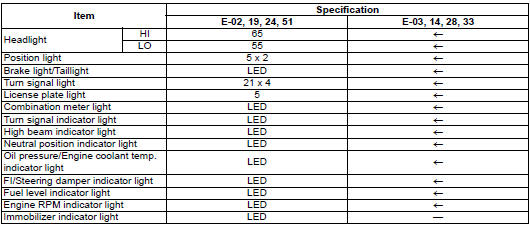

Wattage

unit: w

Suzuki GSX-R. Wattage

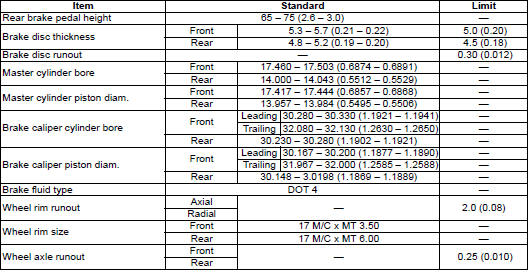

Brake + wheel

unit: mm (in)

Suzuki GSX-R. Brake + whee

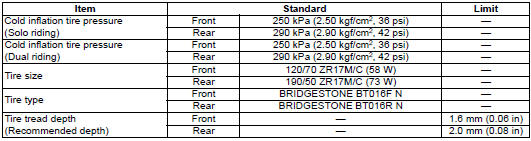

Tire

Suzuki GSX-R. Tire

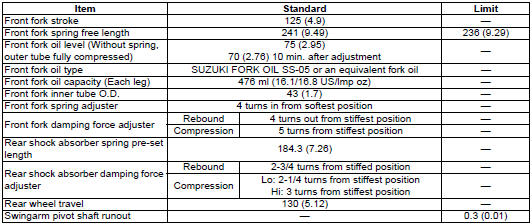

Suspension

unit: mm (in)

Suzuki GSX-R. Suspension

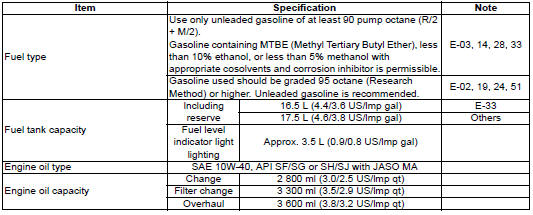

Fuel + oil

Suzuki GSX-R. Fuel + oil


Service data
...

Tightening torque list
