Suzuki GSX-R 1000 Service Manual: Special tools and equipment

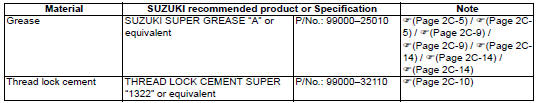

Recommended service material

Suzuki GSX-R. Recommended service material


Note

required service material is also described in the following.

“Rear suspension components”  “rear suspension assembly construction”

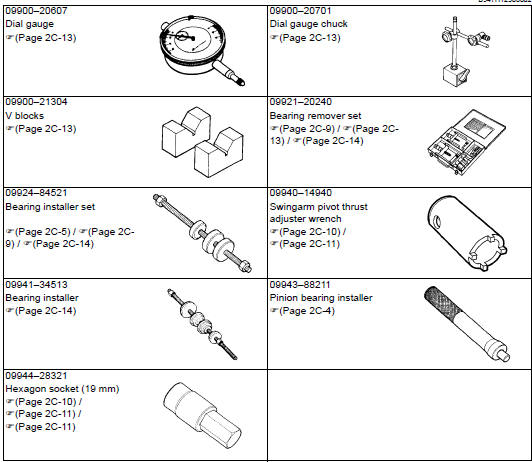

Special tool

Suzuki GSX-R. Special tool


Specifications
Service data Suspension unit: mm (in) Tightening torque specifications Note the specified tightening torque is described in the following. “Rear suspension components”  ...

Wheels and tires
...

Other materials:

Cushion rod bearing removal and installation
Removal Remove the cushion rod. Refer to “cushion rod removal and installation” .  Remove the cushion rod bearing with the special tool. Special tool (a): 09921–20240 (bearing remover set) Installation Caution the removed bearings must be replaced with new on ...

Rear wheel related parts inspection
Refer to “rear wheel assembly removal and installation” . Tire Refer to “tire inspection” in section 0b . Rear brake disc Refer to “rear brake disc inspection” in section 4c . Wheel damper Refer to “drive chain related parts inspection” in section 3a . Sprocket Refer to “drive chain ...

Oil pan / oil pressure regulator / oil strainer removal and installation
Note the oil pan/oil strainer/oil pressure regulator cannot be serviced with the engine installed in the frame. Removal Remove the engine assembly from the frame. Refer to “engine assembly removal” in section 1d .  Remove the plate (1).  Remove the oil pan ...
