Suzuki GSX-R 1000 Service Manual: Specifications

Service data

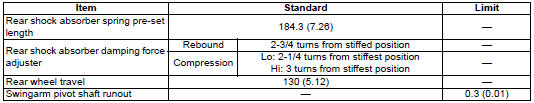

Suspension unit: mm (in)

Suzuki GSX-R. Service data

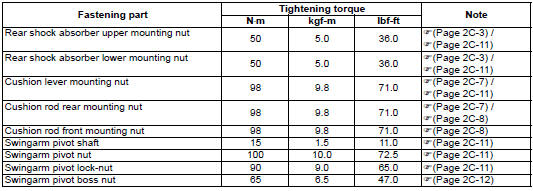

Tightening torque specifications

Suzuki GSX-R. Tightening torque specifications


Note

the specified tightening torque is described in the following.

“Rear suspension components”  “rear suspension assembly construction”

Reference

: for the tightening torque of fastener not specified in this section, refer to “tightening torque list” in section 0c .

Swingarm bearing removal and installation
Removal Remove the swingarm. Refer to “swingarm removal and installation” .  Remove the swingarm pivot bearings (1) using the special tool. Special tool (a): 09921–20240 (bearing re ...

Special tools and equipment
Recommended service material Note required service material is also described in the following. “Rear suspension components”  “rear suspension assembly construction” ...

Other materials:

Exhaust pipe bolt and muffler bolt inspection
Tighten exhaust pipe bolts and muffler bolts initially at 1 000 km (600 miles, 2 months) and every 12 000 km (7 500 miles, 24 months) thereafter Check the exhaust pipe bolts and muffler bolts to the specified torque. Tightening torque exhaust pipe bolt (a): 23 n·m (2.3 Kgf-m, 16.5 Lbf-ft) muf ...

Cam chain tensioner inspection
Inspect the cam chain tensioner in the following procedures:  remove the cam chain tensioner. Refer to “cam chain guide / cam chain tensioner removal and installation” .  Check the contacting surface of the cam chain tensioner. If it is worn or damaged, replace it with a new ...

Piston and piston ring inspection
Refer to “piston ring removal and installation” . Piston diameter Measure the piston diameter using the micrometer at 15 mm (0.6 In) “a” from the skirt end. If the piston diameter is less than the service limit, replace the piston. Special tool (a): 09900–20203 (micrometer (50 – 75 mm)) Pis ...
