Suzuki GSX-R 1000 Service Manual: Using the multi-circuit testers
- Use the suzuki multi-circuit tester set.
- Use well-charged batteries in the tester.
- Be sure to set the tester to the correct testing range.
Special tool

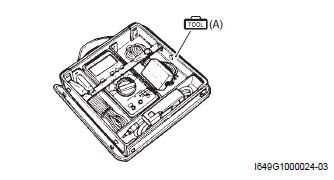

(A): 09900–25008
(multi circuit tester set)
Short circuit check (wire harness to ground)
Disconnect the negative (–) cable from the battery.
Disconnect the connectors/couplers at both ends of
the circuit to be checked.
Note
if the circuit to be checked branches t ...
Using the testers
Incorrectly connecting the (+) and (.) Probes may
cause the inside of the tester to be burned.
If the voltage and current are not known, make
measurements using the highest range.
&nb ...
