Suzuki GSX-R 1000 Service Manual: Regulator / rectifier construction

Suzuki GSX-R. Regulator / rectifier construction

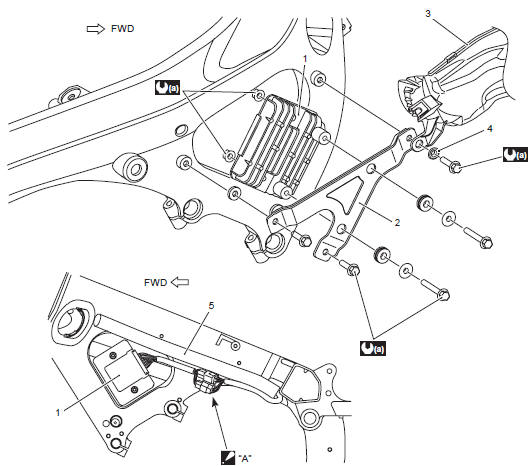

  1. Regulator/rectifier
  2. Regulator/rectifier bracket
  3. Air intake pipe (rh)
  4. Spacer
  5. Wiring harness
  6. Connect
    the regulator/rectifier couplers under the wiring harness
  7. 10
    N·m (1.0 Kgf-m, 7.0 Lbf-ft)
Generator removal and installation
Removal Drain engine oil. Refer to “engine oil and filter replacement” in section 0b .  Remove the left side cowling. Refer to “exterior parts removal and installation” in section 9d ...

Regulator / rectifier removal and installation
Removal Turn the ignition switch off.  Remove the right side cowling. Refer to “exterior parts removal and installation” in section 9d .  Lift and support the fuel tank. Refer to ...
