Suzuki GSX-R 1000 Service Manual: Radiator reservoir tank inspection

Inspect the radiator reservoir tank in the following procedures:

  1.  remove the right side cowling. Refer to “exterior parts removal and installation” in section 9d .

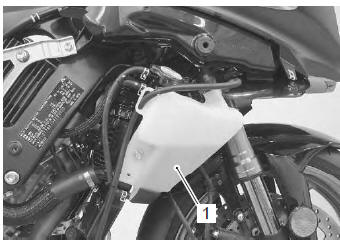

  2.  Inspect the radiator reservoir tank (1) for leaks. If any defects are found, replace the radiator reservoir tank with a new one.

Suzuki GSX-R. Radiator reservoir tank inspection


  1. Reinstall the removed parts.
